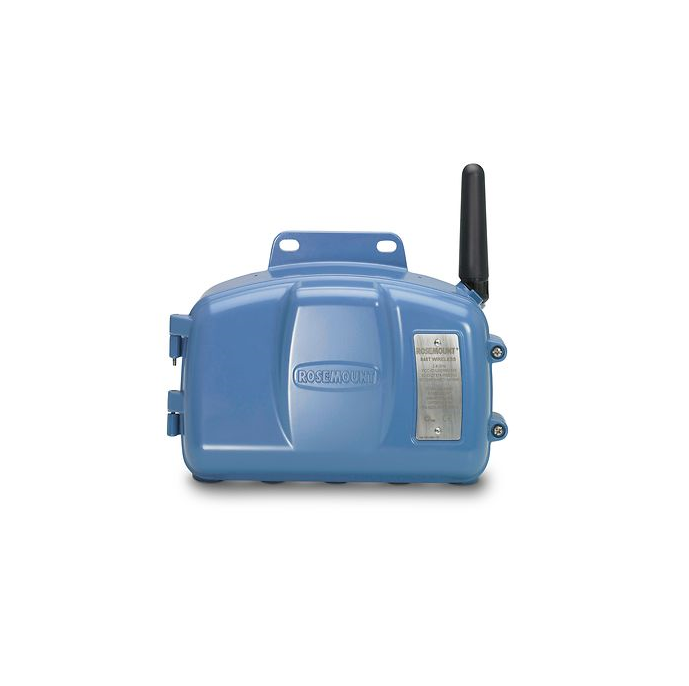

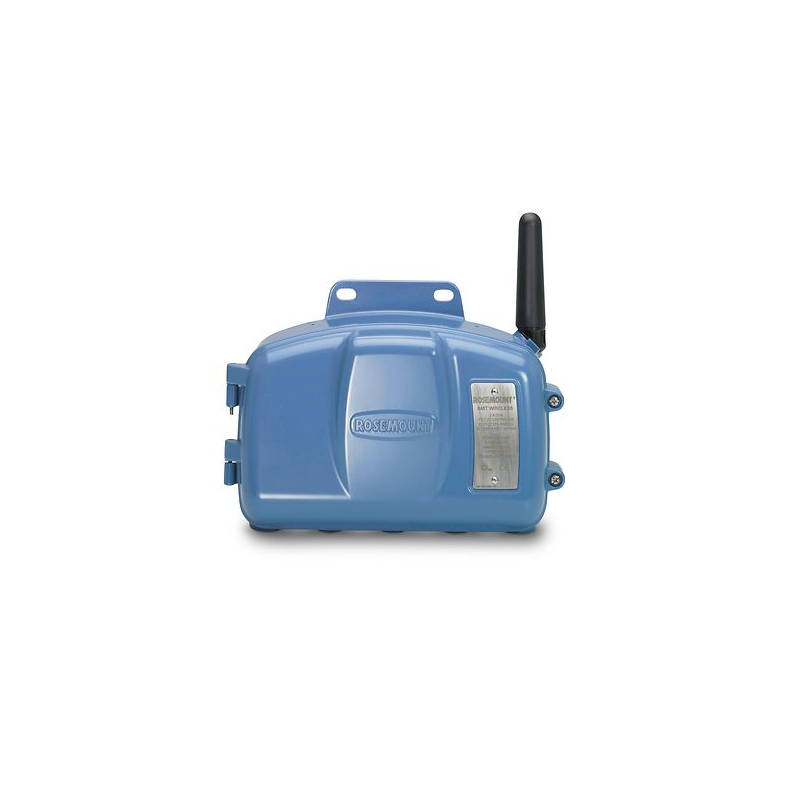

Rosemount 848T Wireless Temperature Transmitter

Product Description

Rosemount 848T Wireless Temperature Transmitter is the premier choice for high density measurements via a WirelessHART®device. This transmitter accepts up to four independently configurable inputs, dramatically reducing your installation and operational costs per point through the use of a smart, reliable and secure wireless network. Additionally, the field-hardened enclosure allows for installation close to any process, even in hazardous areas.

Specifications

Input: Four independently configurable inputs, including 2-, 3- and 4-wire RTDs, thermocouples, 0-1000mV and 0-10V, 2-, 3- and 4-wire ohm, and 4-20 mA signals

Output Signal: WirelessHART® Protocol

Housing: Field hardened aluminum enclosure

Calibration Options: 5-point calibration

Certifications/Approvals: Hazardous location, marine type, see full specs for complete list of certifications

Update Rate: 4 sec. to 60 min., user selectable

Power Module Life: Up to 10-year life, field replaceable (order separately)

Antenna Type: External (standard and extended range)

Features

• WirelessHART® technology is secure, cost-effective and delivers >99% data reliability

• Best price per point solution accepts four configurable inputs (RTD, thermocouple, ohm, millivolt and 4 to 20 mA signals)

• Field-hardened enclosure allows for installation close to any process, even in harsh environments and hazardous areas

• Extended range antenna offers wireless communication for long distance installations

• Designed with up to eight configurable alerts for advanced measurement monitoring

• Device dashboards display an easy interface for simplified device configuration and diagnostic troubleshooting

• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• Easy installation enables quick instrumentation of measurement points without the cost of wiring
