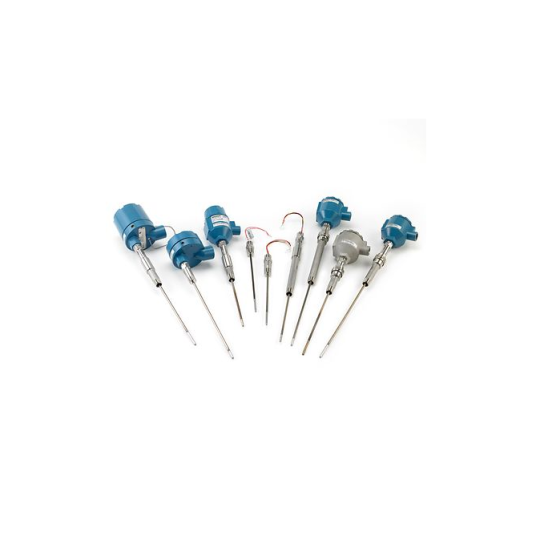

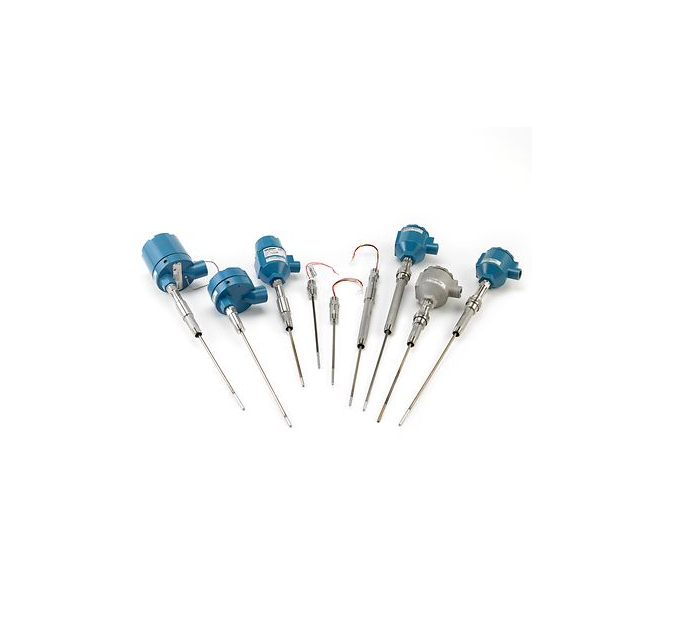

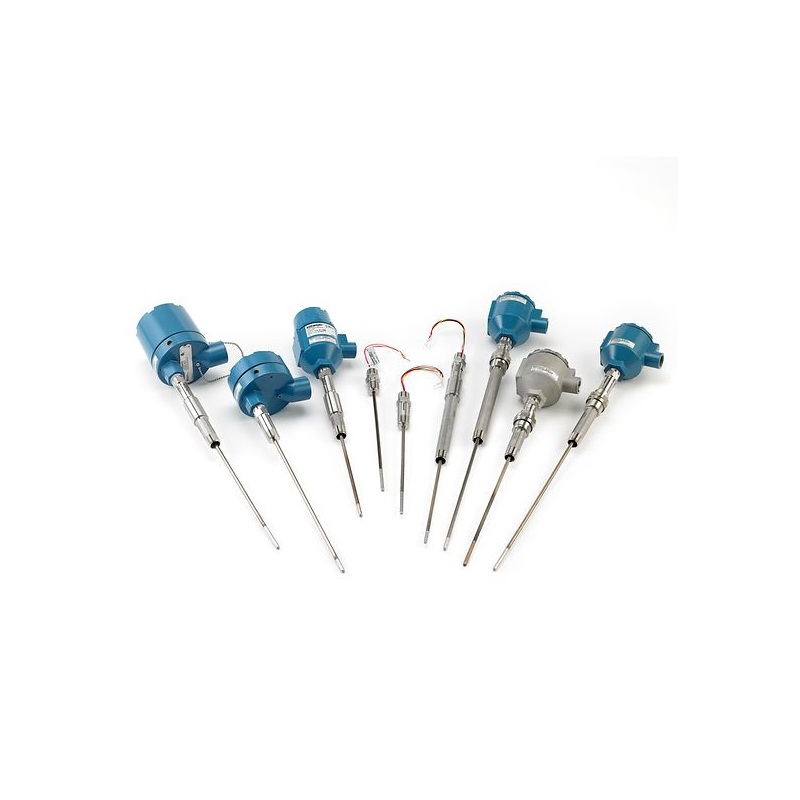

Rosemount 214C Thermocouple Temperature Sensor

Product Description

The Rosemount 214C Thermocouple Temperature Sensor is an industry-standard sensor that features resilience and durability in tough process environments. This sensor offers J, K and T thermocouple types and meets ASTM and IEC standards for thermocouple accuracy tolerance. Engineered to provide good performance in high vibration conditions, this sensor also covers a wide range of temperatures and is available in single or dual configurations with grounded or ungrounded junctions.

Specifications

Insulation Resistance: 1000 MΩ minimum insulation resistance when measured at 500VDC at room temperature

Certifications/Approvals: Hazardous location, see full specs for complete list of certifications

Lead Wires: 24 AWG wire, FEP insulated. Color coded per IEC 60584 or ASTM E230.

Insulation Resistance: 1000 MΩ minimum insulation resistance when measured at 500VDC at room temperature

Certifications/Approvals: Hazardous location, see full specs for complete list of certifications

Features

• Sensor types include J, K and T thermocouples for application flexibility

• Meets ASTM and IEC standards for thermocouple accuracy tolerance, providing reliable performance

• Covers a wide range of temperatures from -196 to 1200 °C (-321 to 2192 °F) for durability in varying process environments

• Withstands high vibration to offer resilience in tough process conditions

• Available in single or dual configurations with grounded or ungrounded junctions for process compatibility

• All sensor styles and lengths are available in ¼-in. diameter mineral-insulated (MI) cable to meet industry standards

• Adjustable or fixed compression fittings and spring-loaded or welded adapters meet specific mounting requirements

• Enclosure and connection head options allow for process adaptability

• Global hazardous location approvals to meet project requirements
