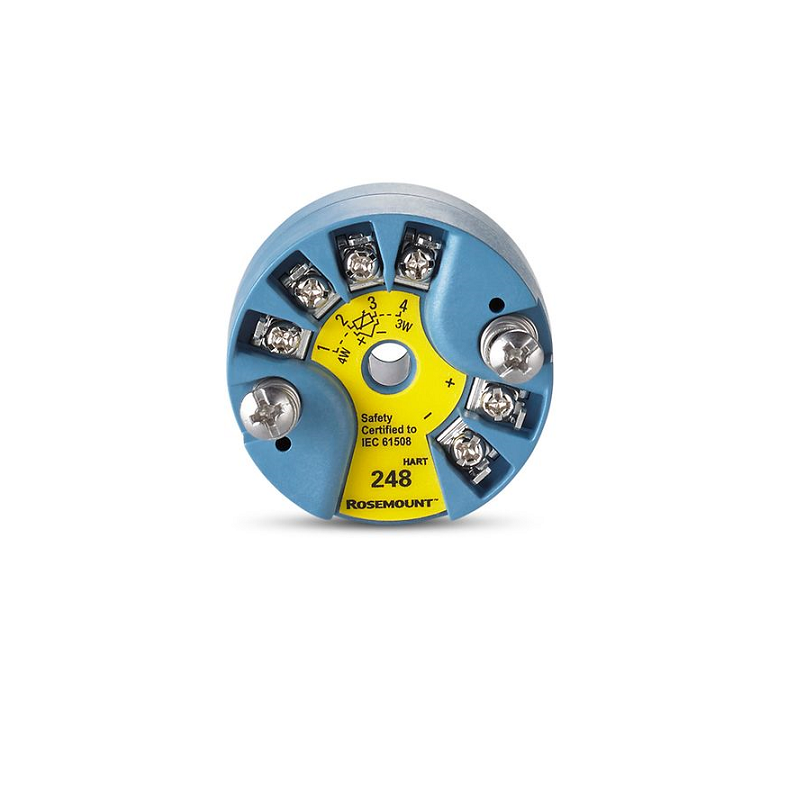

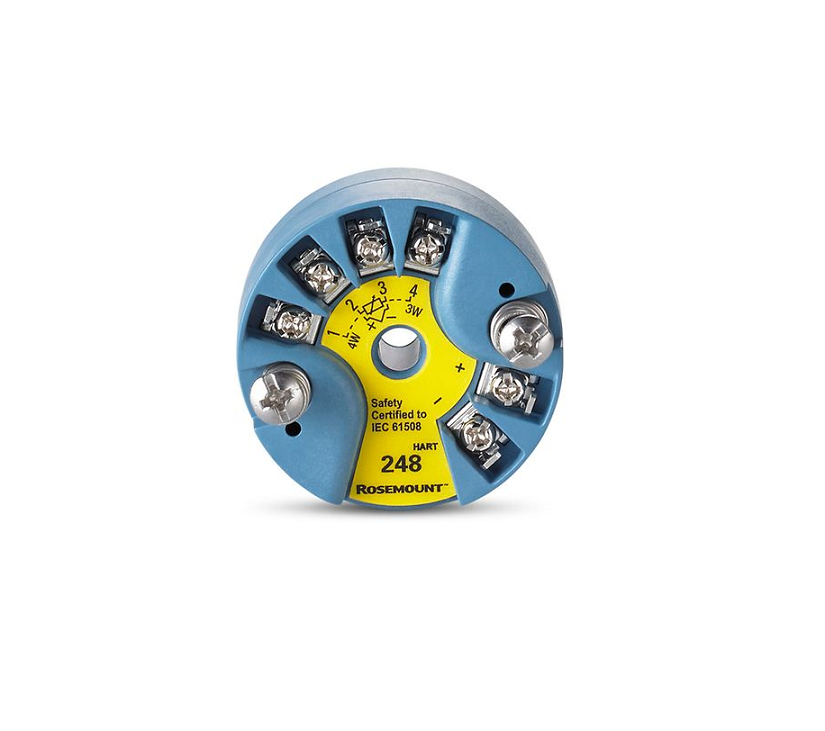

Rosemount 248 Head Mount Temperature Transmitter

Product Description

An industry-standard solution, the Rosemount 248 Temperature Transmitter delivers consistent and reliable performance for process environments. Engineered to meet requirements for common single point temperature measurement applications, its durable design withstands a wide range of process environments. For application flexibility, this head mount temperature transmitter is available with a variety of housing options.

Specifications

Input: Single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)

Output Signal: 4-20 mA /HART™ protocol

Housing: DIN B head mount

Diagnostics: Basic diagnostics including open/short sensor diagnostics

Calibration Options: 5-point calibration

Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications

Features

• Standard transmitter meets common single point temperature measurement application requirements

• Housing construction provides superior resistance to many process environments

• One-year stability rating reduces maintenance costs

• Open/short sensor diagnostics help detect issues in the sensor loop to ensure reliable performance

• Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting

• Transmitter-sensor matching with Callendar-Van Dusen constants reduces total measurement error
