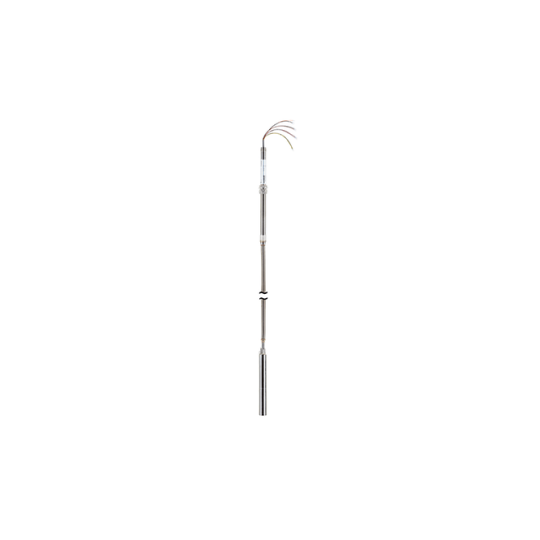

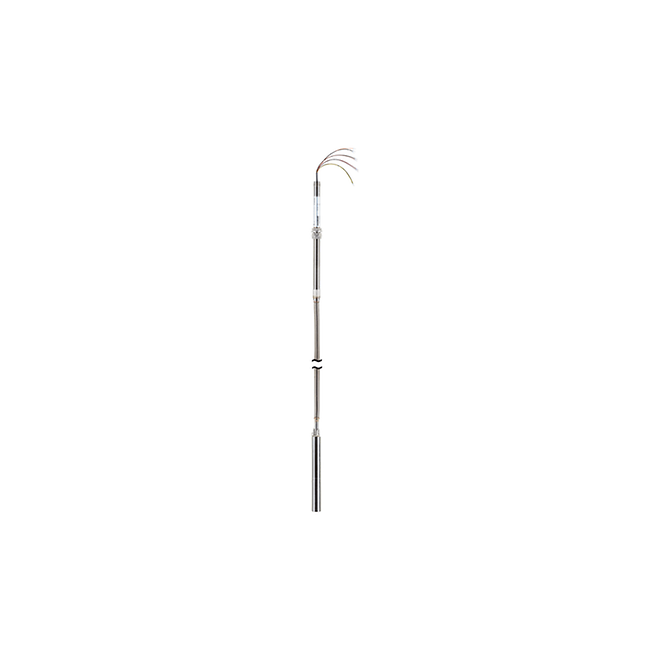

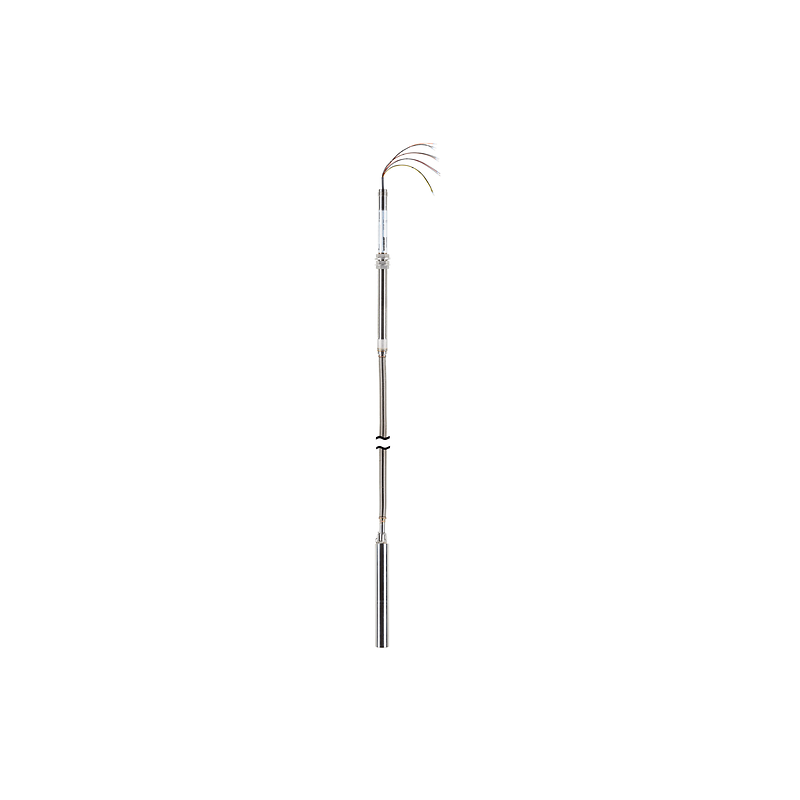

Rosemount 565 Multiple Spot Temperature Sensor

Product Description

The Rosemount 565 Multiple Spot Temperature Sensor measures temperature with a number of Pt-100 spot elements placed at different heights to provide a tank temperature profile and an average temperature. Only fully immersed elements are used to determine product temperature. Each sensor is connected to a Rosemount 2240S Multi-input Temperature Transmitter.

Specifications

Accuracy: 1/6 DIN Class B (standard), 1/10 DIN Class B (option).

Calibration option: Individually calibrated spot elements with four-wire connection enables ±0.025 °C (±0.045 °F) total sensor accuracy.

Element Type(s): Pt-100 spot elements according to EN 60751.

Number of Spot Elements: Up to 16 RTD spot elements:

                                           Three-wire common return or individual wiring.

                                            Four-wire individual wiring.

Measurement Range: -50 to +250 °C (-58 to +482 °F)

Overall Length: Standard is 5-70 m (16.4-230 ft). Other lengths on request.

Protective Sheath: Stainless steel, AISI 316. Wall thickness 0.3 mm (0.012 in.). ∅= 1 in

Features

• Get custody transfer net volume accuracy with three- or four-wire multiple spot temperature sensors for bulk liquid storage tanks.

• Improve accuracy with unique sensor calibration.

• Measure liquid temperature with up to 16 spot elements.

• Combine with integrated water level sensor (Rosemount 765 Multiple Spot Temperature and Water Level Sensor).

• Select from a wide range of accessories such as anchor weights and vapor boots.
