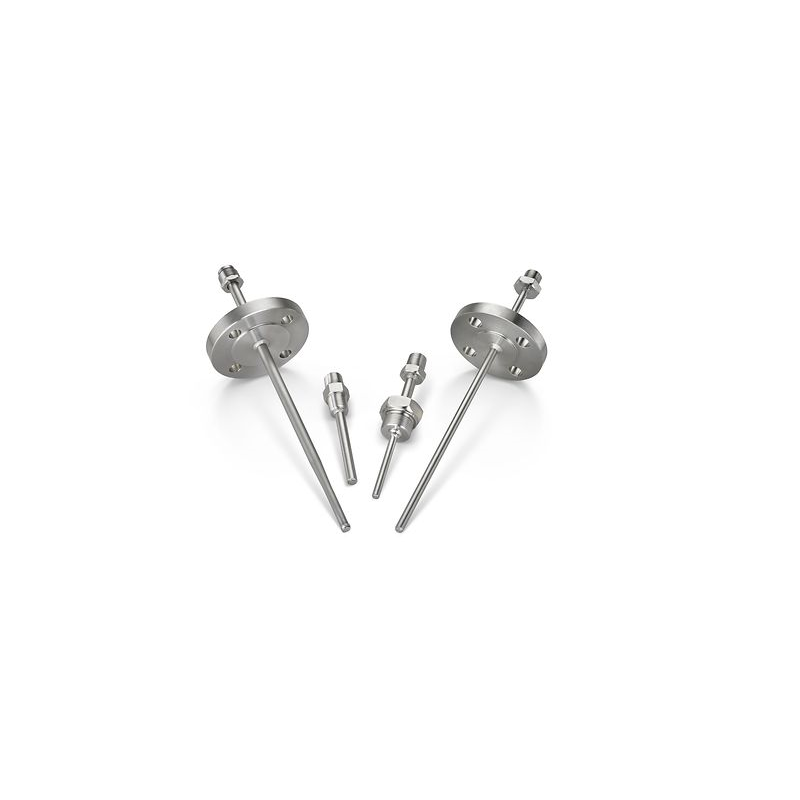

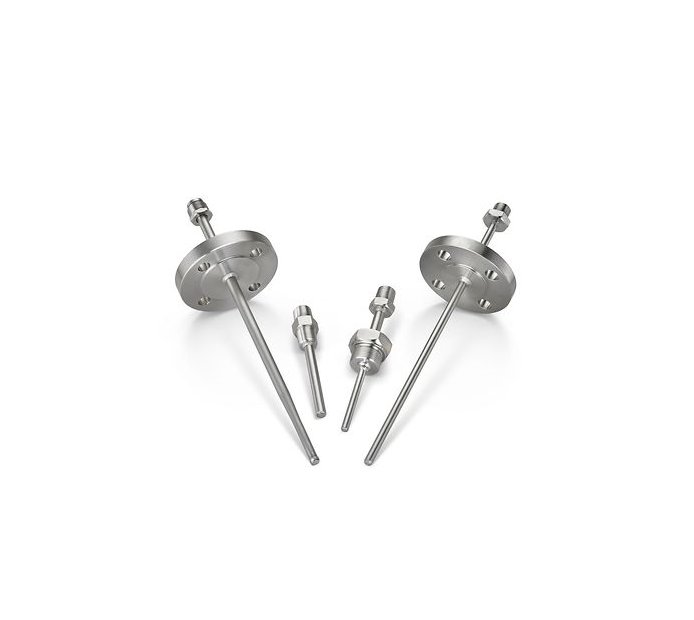

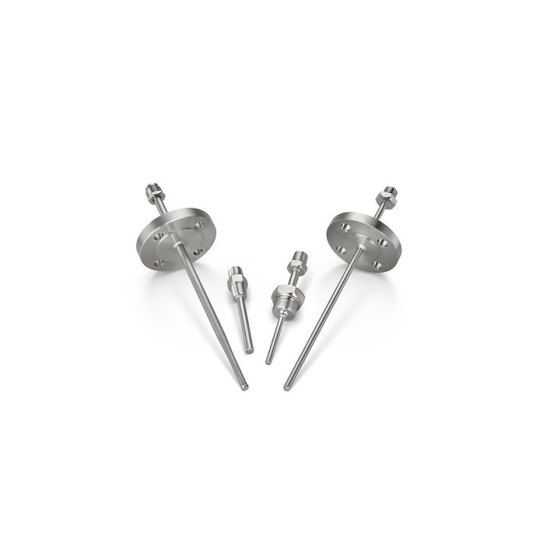

Rosemount 114P Protection Tube

Product Description

Manufactured from metal tubing and sealed with a welded end cap on the tip, the Rosemount 114P Protection Tube uses a process seal that is achieved either by a flange or a machined, threaded fitting welded along the tube. This protection tube thermowell solution is typically used in the chemical and pharmaceutical industries and is designed to allow for a fast time response or for applications where long immersion lengths are needed.

Specifications

Certifications/Approvals: Material certification

Product Tests: External pressure test, internal pressure test, dye penetration (see full specs for complete list)

Features

• Threaded and flanged mounting styles with stem profile options allow for application flexibility

• Available in 316/316L dual-rated stainless steel and 316Ti stainless steel

• Thermowell options include material certifications that ensure material conformance and traceability in accordance with EN 10204 type 3.1

• Special testing options to meet process requirements, including external and internal hydrostatic pressure testing and dye penetration
