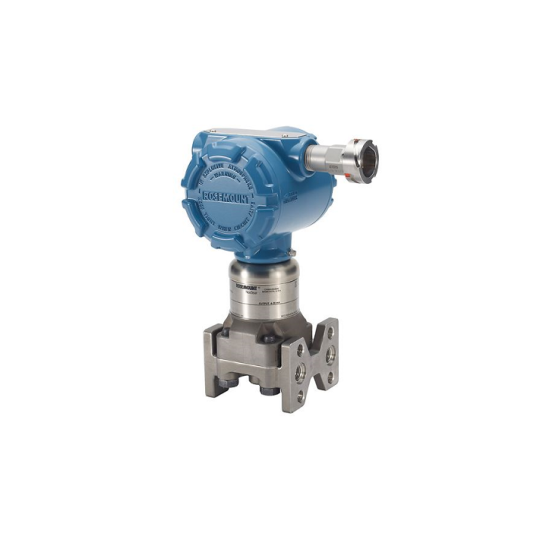

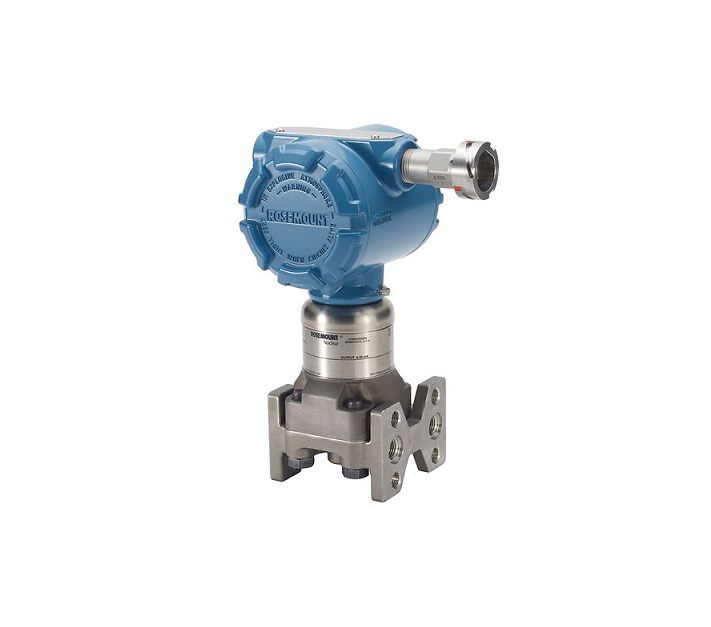

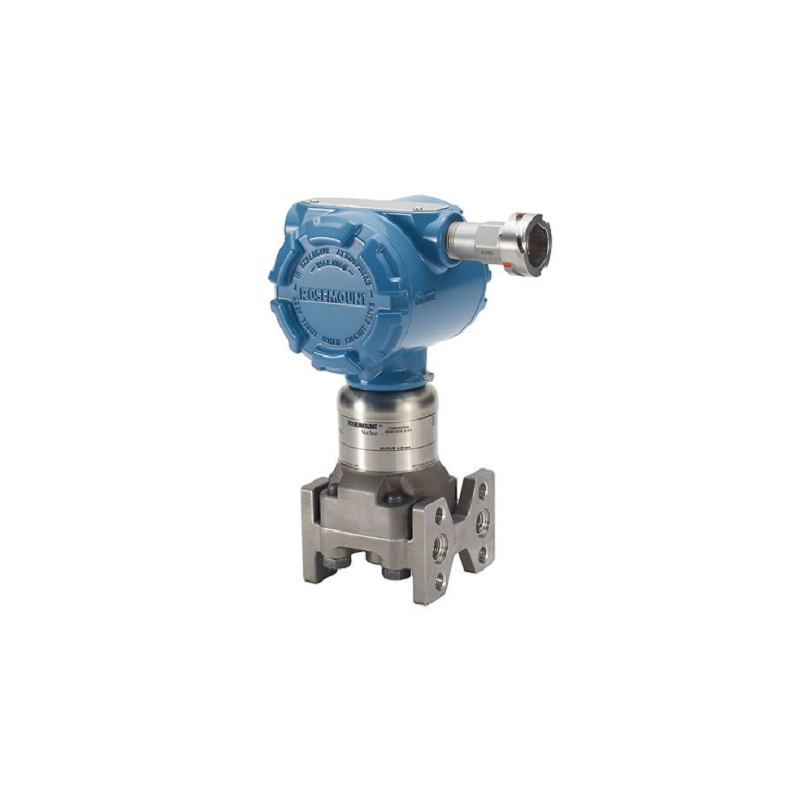

CẢM BIẾN ÁP SUẤT ROSEMOUNT 3152N Nuclear Qualified

Product Description

Engineered for precision, the Rosemount 3152N Nuclear Qualified Pressure Transmitter can provide reliable analog pressure measurements in nuclear applications over an extended service life. This transmitter is qualified per IEEE Std 323™-1974/1983/2003 and IEEE Std 344™-1975/1987/2004 to meet industry standards. This device also features stringent quality control during the manufacturing process, which includes traceability of pressure-retaining parts, special nuclear cleaning and hydrostatic testing.

Specifications

Output Signal: 4-20 mA

Rangedown: Up To 10:1 (5:1 for Range 1)

Measurement Range: Up to 2000psi (13.79 MPa) Differential, Up to 4000psig (27.58 MPa) Gage, Up to 4000psia (27.58 MPa) Absolute

Housing Material: SST, Aluminum

Process Wetted Material: 316L SST, Alloy C-276

Seismic Rating: 8.5g ZPA

Radiation Rating: 6.5 Mrad (65 kGy) TID Gamma Radiation

Steam/Pressure Temperature: 290°F (143.3°C ) Steam/Temperature

Qualification Standard: IEEE Std 323™-1974/1983/2003

                                      IEEE Std 344™-1975/1987/2004

Product Literature: The Product Data Sheets and Manuals posted on this web-site are intended for general product information only, with errata included. They may not represent the latest revision or contain information relating to recent product notifications, if any.

Features

• Qualified per IEEE Std 323™-1974/1983/2003 and IEEE Std 344™-1975/1987/2004 for an industry-standard solution

• Withstands extreme ambient conditions to 6.5 Mrads TID gamma and seismic levels to 8.5g ZPA

• Engineered for steam pressure/temperature performance for improved safety

• Provides 0.2% reference accuracy for reliable measurements

• Quality control includes traceability of pressure-retaining parts, special nuclear cleaning and hydrostatic testing
