CẢM BIẾN ÁP SUẤT ROSEMOUNT 3051S MultiVariable

Product Description

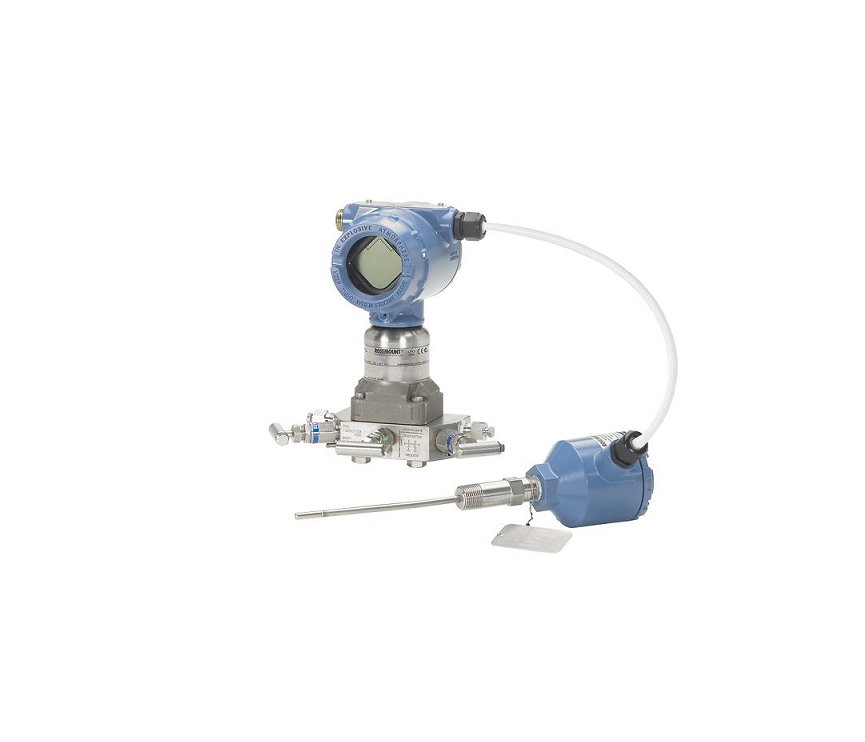

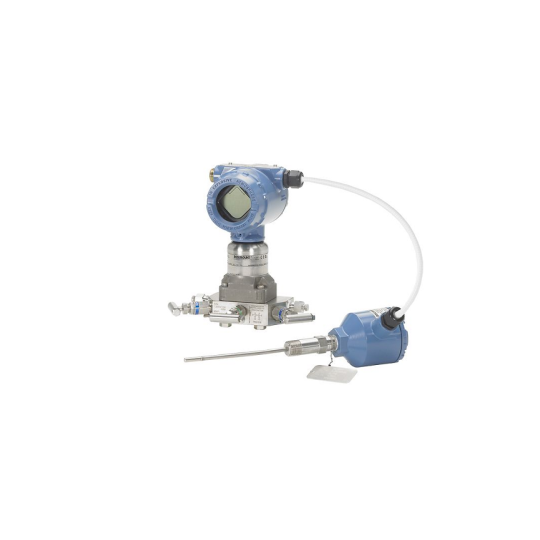

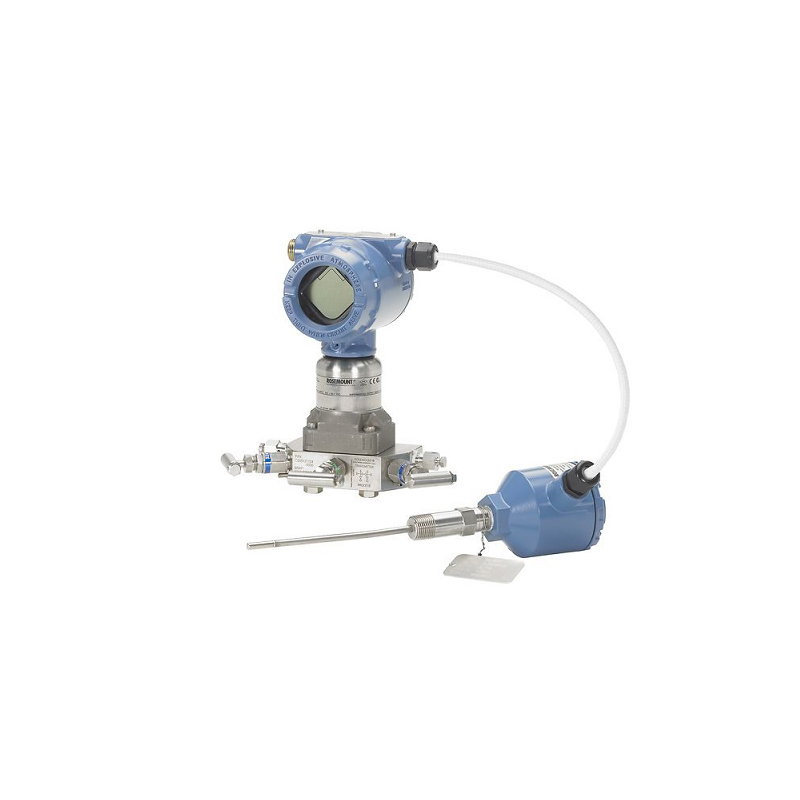

The Rosemount 3051S MultiVariable Transmitter is a best-in-class solution customized to obtain measurement combinations of differential pressure, static pressure and process temperature. This multivariable transmitter is a cost-effective device that reduces pipe penetrations, impulse piping and connection systems. This device is also engineered with built-in flow calculations for fully compensated mass flow measurements.

Specifications

Warranty: Up to 15-year limited warranty

Rangedown: Up to 200:1

Communication Protocol: 4-20 mA HART™, WirelessHART®, FOUNDATION™ Fieldbus

Measurement Range: Up to 2000 psi (138 bar) differential, Up to 6092 psi (420 bar) static

Process Wetted Material: 316L SST, Alloy C-276, Tantalum, Gold-plated 316L SST

Diagnostics: Basic Diagnostics

Certifications/Approvals: NSF, NACE™, hazardous location, see full specs for complete list of certifications

Features

• Measures multiple variables and standardizes on a single model number for streamline process and cost-efficiency

• Reduces costs by eliminating the need for stacked transmitters and additional wiring

• Primary elements available as assemble-to options for simple installation and commissioning

• Multivariable design reduces pipe penetrations, impulse piping and connection systems for cost-savings

• Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations

• All-welded, SuperModule™ design offers industry-leading accuracy in harsh environments and applications

• Engineering Assistant Software allows for configuration in two easy steps

• Ultra for Flow provides optimized flow readings with a ±0.04% of reading accuracy

• Designed with built-in flow calculations for direct reporting of fully-compensated mass, energy or volumentric flow
