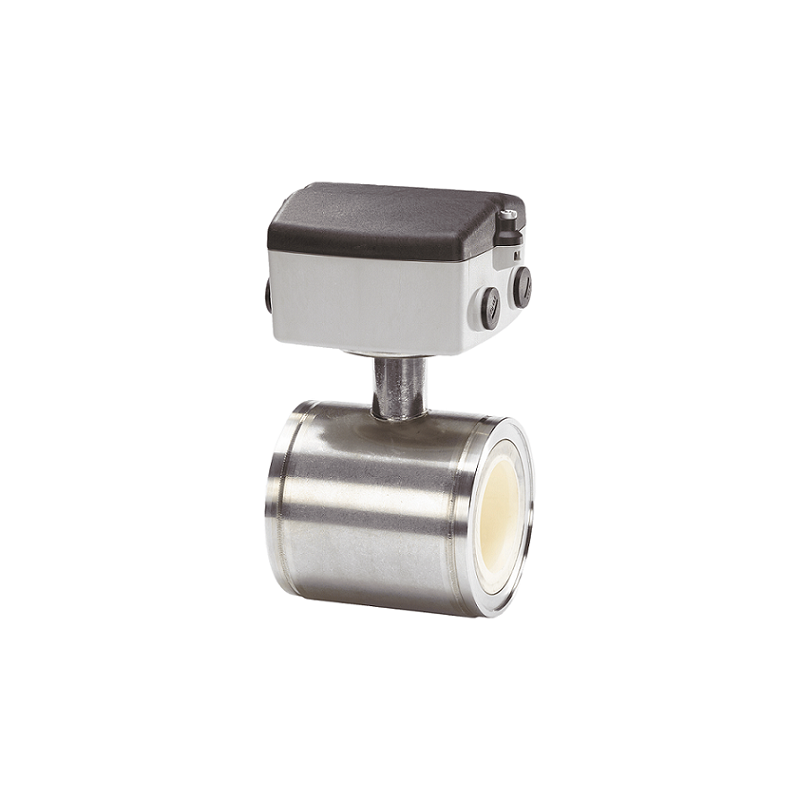

SIEMENS SITRANS FM MAG 1100 (High temperature)

SITRANS FM MAG 1100, designed for general industry environments, has a wafer design sensor in corrosion-resistant stainless steel housing. Highly resistant liners and electrodes are suitable for harsh process conditions.

Detail

Meassuring range: 0 to 10 m/s

Nominal Sizes: From DN 2 to DN 100 (1/12" to 4")

Accuracy: 0.2 % ±1 mm/s

                 0.4 % ±1 mm/s (PFA)

Operating Pressure: Max. 40 bar (Max. 580 psi)

Ambient temperature: From -40 to 100 °C (-40 to 212 °F)

Medium temperature: From -30 to 200 °C (-22 to 390 °F)

Liners: Ceramics

            PFA

            Electrodes Platinum

            Hastelloy

Material: Stainless steel AISI 316L (1.4404)

Approvals: ATEX - 2 GD Zone 1, FM Class 1 div 2

Benefits

• Compact wafer design meets EN 1092, DIN and ANSI flange standards

• Easy Plug & Play field changeability of transmitter

• Compact or remote mounting possible

• Highly resistant liner and electrodes that are suitable for most extreme process media

• Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprint
