Application
* Designed for Explosive Atmospheres Zone 1 and Zone 2;
* Designed for IIA and IIB Groups Explosive Atmospheres;
* Designed for Temperature Classifications T1~T4;
* Designed for Explosive Hazardous Locations Such as Oil Refinery, Storage, Chemical, Pharmaceuticals, Military Industries, Etc.
* Designed for Ventilation of Workshops and Warehouse, Circulation and Renewal of Air in the Laboratory.
Technical Parameters
* Compliance With: GB 3836.1, GB 3836.2, IEC60079;
* Explosion Protection: Ex d IIB T4 Gb;
* Rated Voltage: AC220/380V;
* Main Spindle speed: 1450 r/min;
* Corrosion Resistance: WF1;
* Cable Entry: G3/4";
* Cable Outer Diameters: Φ9mm~Φ14mm.
Features

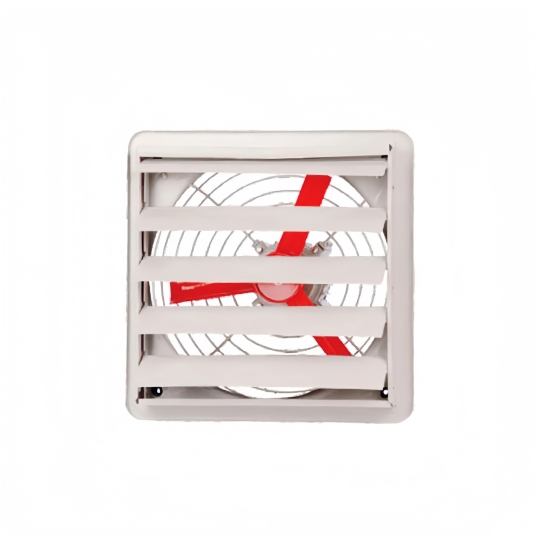

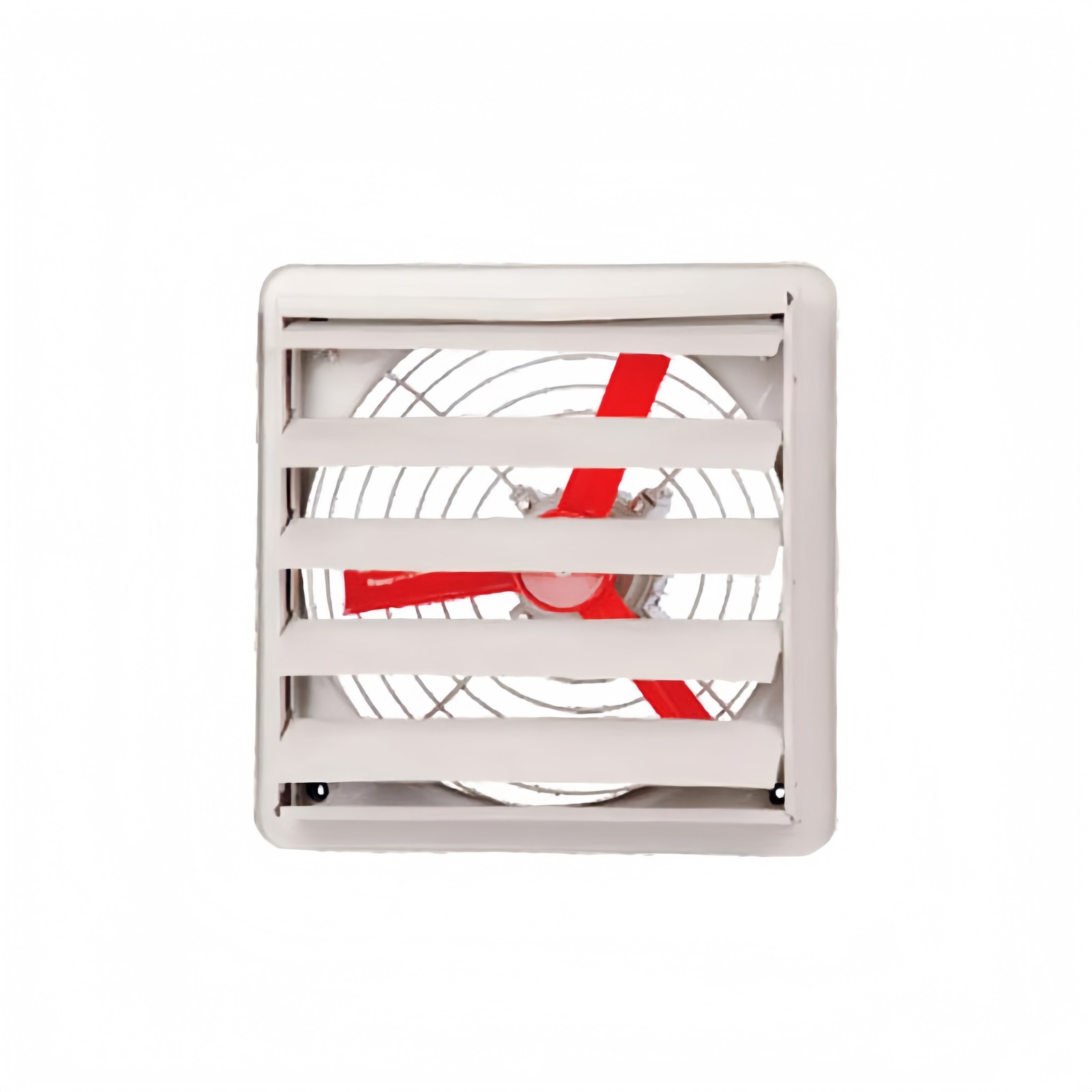

* Explosion Proof Wall Exhaust Fan is Composed of Explosion Proof Motor, Fan Blades, Panel, Etc.
* The Panel of Explosion Proof Wall Exhaust Fan is Welded by High-Quality Steel Plate, and the Louver is Die Casted of Aluminum Alloy with High Voltage Electrostatic Powder Coated Surface;
* Good Appearance, Integrated Structure, Safe and Reliable;
* The Damping Device Lows the Operating Noise;
* Steel Pipe or Cable Wiring.
