CẢM BIẾN CHÊNH ÁP YOKOGAWA EJA130E

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

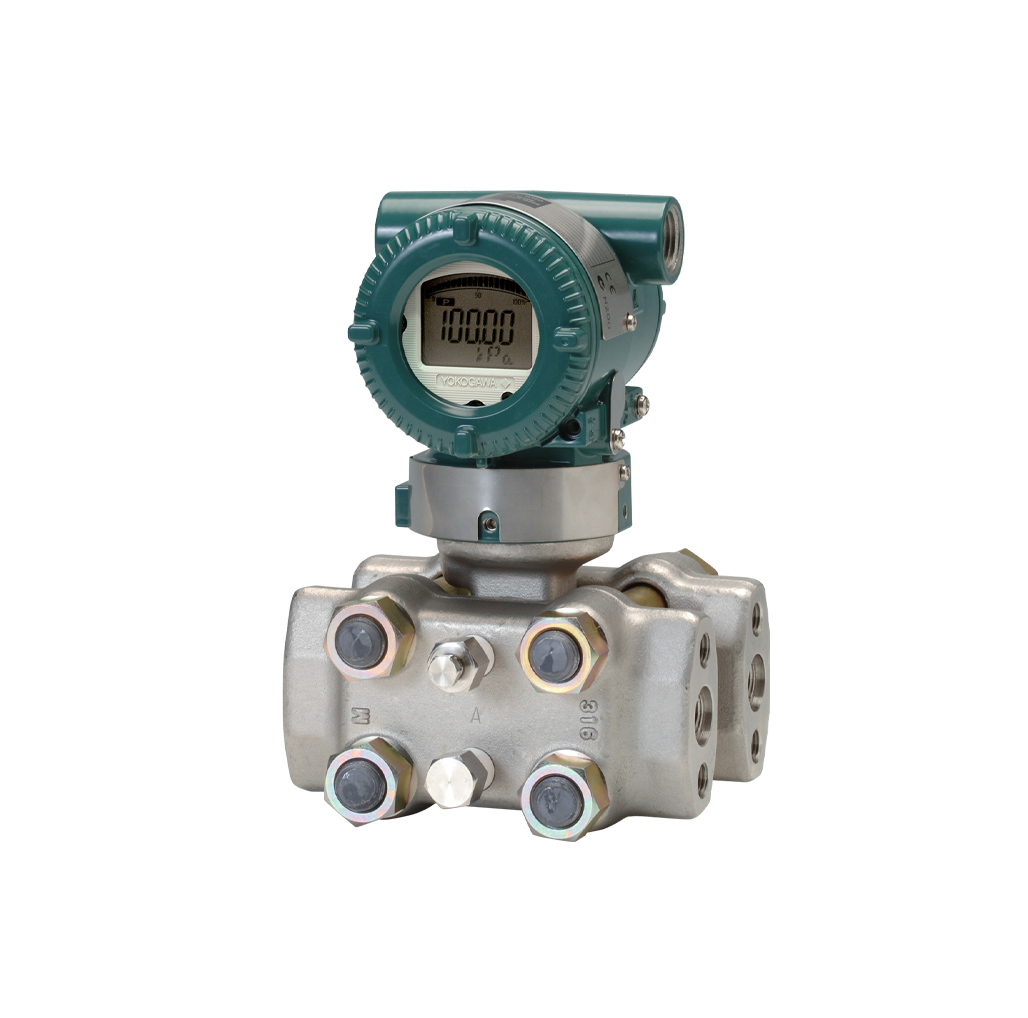

The EJA130E is a differential pressure transmitter designed to work in a high static pressure enviroment.
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
Measurement Types
Primary Variable: Differential Pressure (DP)
Secondary Variable: Static Pressure (SP)
Reference Accuracy
Primary Variable: ±0.055% of DP Span
Secondary Variable: ±0.5% of SP Span
Long Term Stability (All Normal Operating Conditions)
Primary Variable: ±0.1% of URL per 10 years
Maximum Pressure Limit (MWP)
All Capsules: 4,500 psi
Over-pressure Effect
Primary Variable: ±0.03% of URL
Rangeability
Primary Variable: 100:1
Burst Pressure
All Capsules: 19,100 psi (132 MPa)
Specification Conformance
EJX-A Series: ±3σ
